1.1.1.2. Colorbar View

1.1.1.2. Colorbar View
1

Colorbar setup

1. Colorbar setup
Click in the colorbar area for detailed information on the measured colorbar and to change the setup.
2

Export colorbar
definition

2. Export colorbar definition
Export the current selected colorbar as a colobar definition file CBF.
3

Preview scan

3. Preview scan
Top colorbar shows the colorbar definition, the expected. The colorbar below
displays the patch data received from the scanning device.

Click on Measured colorbar to preview expected versus measured colorbar:
4

Detected 1st patch

4. Detected 1st patch
Indicates the number of the first patch from the colorbar definition data. The first patch can be looked when using the IntelliTrax or EasyTrax.
5

Colorbar details

 and ITX XY setup

5. Colorbar details and ITX XY setup
Indicates the length in mm. Use the XY button to setup the XY parameter for IntelliTrax, see here: 1.1.1.2.1. IntelliTrax XY coordinates. Sample setup 1.1.1.2.2. IntelliTrax XY sample
6

Installed colorbars

6. Installed colorbars
Shows all colorbars within InkZoneMove
7

Cancel / Store

7. Cancel / Store
Accept or discard changes
8

Active colorbar

8. Active colorbar
Currently selected colorbar
9

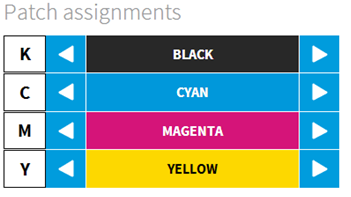

Patch assignment

9. Patch assignment
Printed color to colorbar patch assignment. Change with left and right arrow.
10

Go to Measurement View

10. Go to Measurement View
 1.1. Measurement View
