1.1.14. Ink-Key Colorbar Patch View

Click on a single measurement to display the density, colorimetric or TVI information data. Note that the display varies by the selected view.

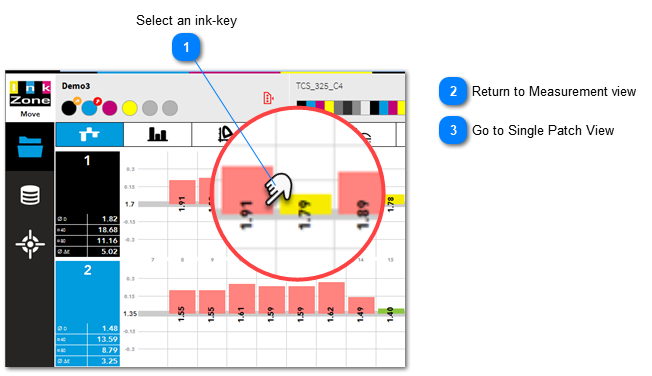

1.1.14. Ink-Key Colorbar Patch View

1

Select an ink-key

1. Select an ink-key
Click on a single measurement to displays density, colorimetric and TVI information for all patches in the selected ink-key. The displayed data depends on the program's selected view.

Ink- key patch data in Densitometric view


Ink- key patch data in Colorimetric view




Ink- key patch data in Dotgain view




[D] = measured density / dot gain
[T] = target density / dot gain
[∆D] = density difference

[L] = L value
[a] = a value
[b] = b value
[∆E] = DeltaE
[∆H] = DeltaH

[P] = dot percentage from patch
[∆] = difference measured and target dot gain



2

Return to Measurement view

2. Return to Measurement view
1.1. Measurement View
3

Go to Single Patch View

3. Go to Single Patch View
1.1.14.1. Single Patch View
