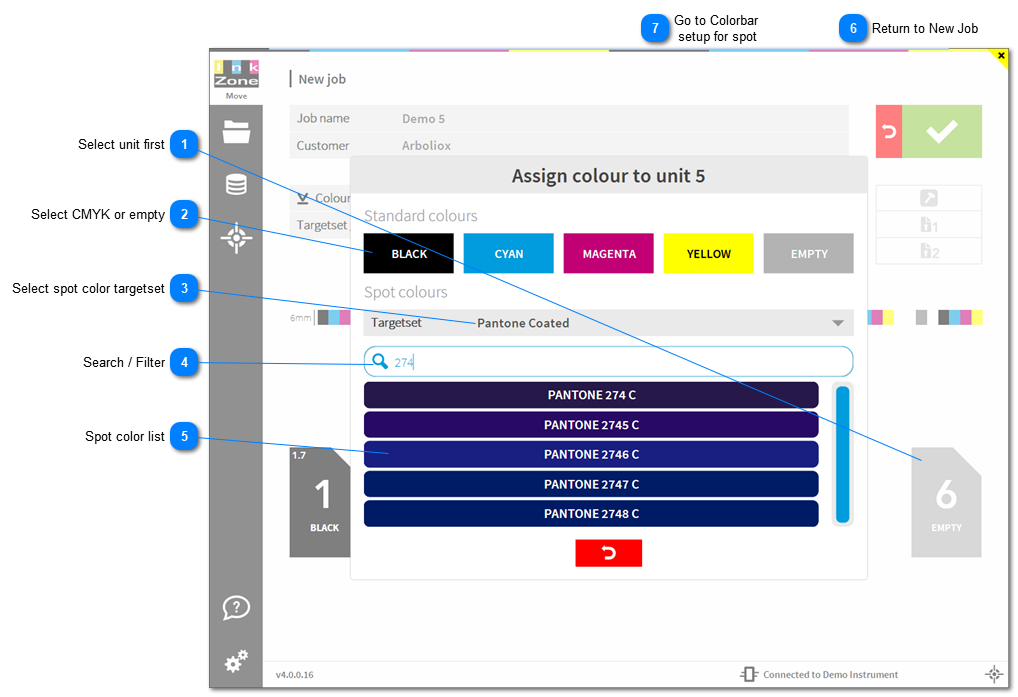

1.3.2.1. Spot Color Setup

1.3.2.1. Spot Color Setup
1

Select unit first

1. Select unit first
Click on the unit to open the assignment dialog
2

Select CMYK or empty

2. Select CMYK or empty
Select from here one of the process colors CMYK or set the units as empty, none printing
3

Select spot color targetset

3. Select spot color targetset
When using a spot color then select the target set first
4

Search / Filter

4. Search / Filter
Add a search string to filter the selection
5

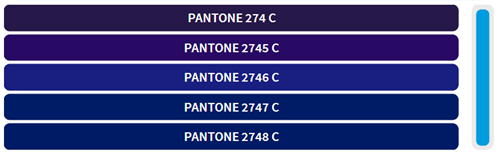

Spot color list

5. Spot color list
Select the color from the filtered spot color list
6

Return to New Job

6. Return to New Job
1.3.2. New Job
7

Go to Colorbar

setup for spot

7. Go to Colorbar setup for spot
1.3.2.1.1. Colorbar setup for spot

The contents of 1.3.2.1. Spot Color Setup

1.3.2.1.1. Colorbar Setup for Spots
