1.2.3.1.1. Tolerance for Mid-tone and Sheet Consistency

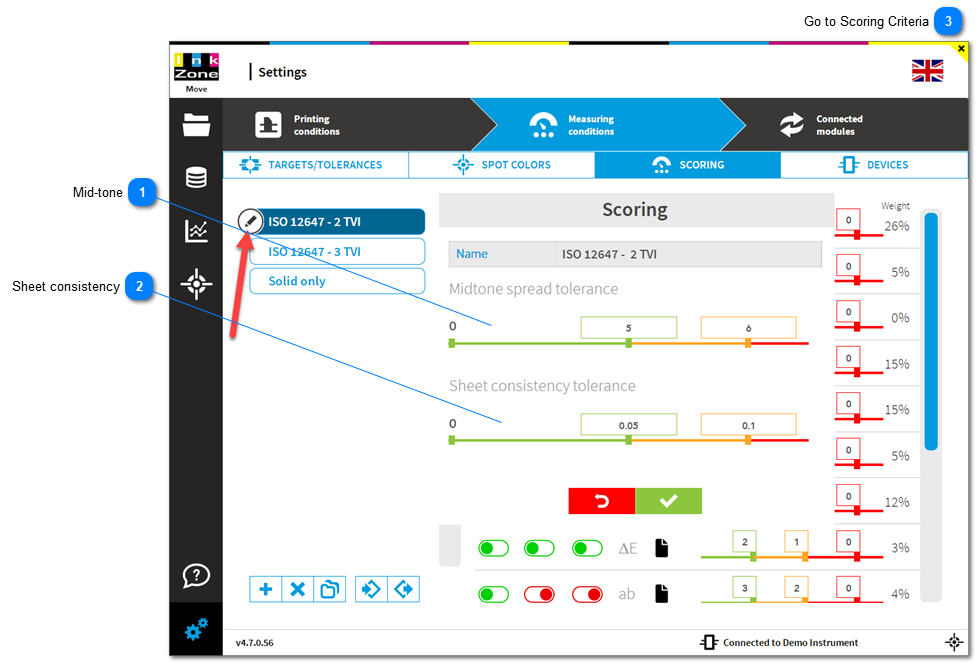

When hovering over the left side of the targetset name (see red arrow), the tolerance setup for mid-tone spread and sheet consistency is shown.
 Mid-toneSet-up tolerances for mid-tone spread.
It compares the TVI mid-tone value (40 or 80%) of C,M and Y.
|
|
 Sheet consistencySet-up tolerances, deviation from density average, for every printed color.
The sheet consistency density value compares the solid patch distribution to the average density.

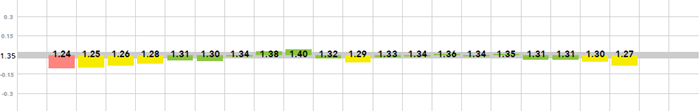

A good sheet consistency means that the density across the sheet has been perfectly leveled out:

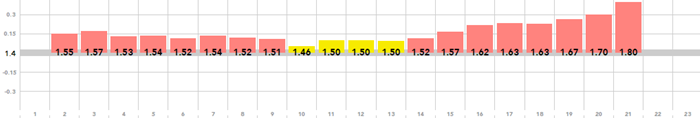

With a low consistency value, the density across the sheet varies a lot:
|
|
